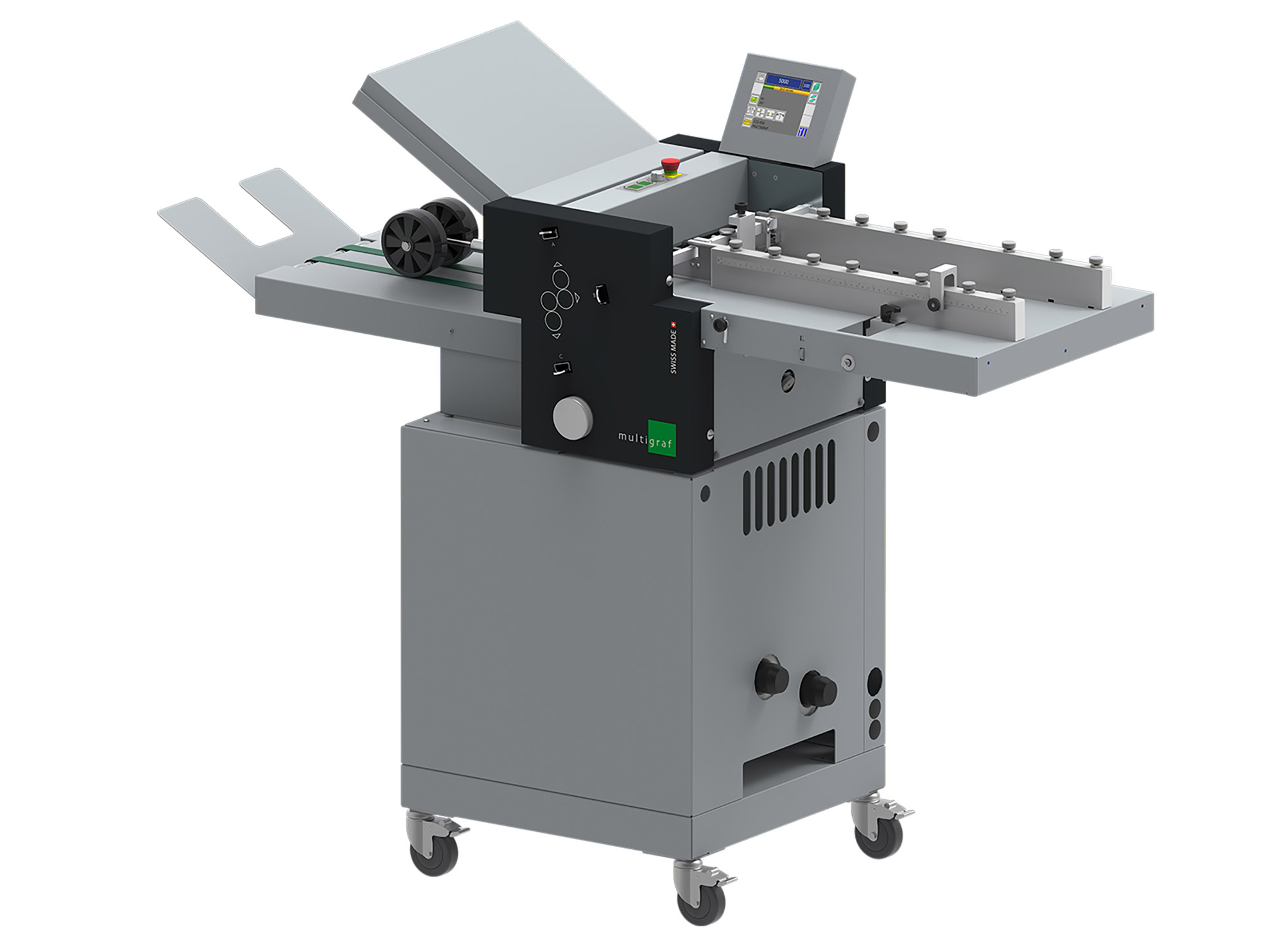

235SM Parallel Fold Paper Folder

235SM

235SM Overview

  • Parallel folding
  • Suction feeder
  • Easy operation via touchscreen
  • For A6 to A3+ formats
  • 2 manual folding plates
  • Can be combined to form cross fold units

The Multigraf 235SM is a high-performance suction feeding system designed for parallel folding with 2 conventional manual folding plates. It can integrate seamlessly with a wide array of finishing equipment.

Recurring tasks can be simply saved to memory to be recalled as setup information later. This makes a further important contribution to optimisation of processing cost.

High Accuracy Suction Feeding

Friction-free feeding minimises marking and ensures gentle handling, perfect for coated or digitally printed media.

Cross-Folding Integration

Easily integrated with Multigraf’s 235KM or 435KM to form cross-fold units or for other special folding applications, expanding your production capabilities.

Job Memory Functionality

Frequently used settings can be saved and quickly recalled, streamlining repeat tasks and optimising workflow efficiency.

High-Speed Operation

Supports throughput of up to 415 sheets per minute without compromising feeding accuracy.

Broad Media Range

Handles media from 40 to 250 gsm, in sizes up to 350 x 500 mm.

Simple Touchscreen Interface

Set up, monitor, and adjust feed settings in real-time using an intuitive control panel.

Download Brochure
Enquire

Typical Applications

  • Brochures
  • Leaflets
  • Booklets
  • Greeting cards
  • Menus
  • Programmes

Technical Specifications

Number of folding plates: 2

Minimum folding length: 40 mm standard (20 mm with special folding kit)

Maximum folding length: Up to 423 mm

Detector bars: Accessory

Feeding system: Bottom suction feeder

Delivery possibilities: Stream delivery electric, Standing delivery

Roller adjustment: Yes, manually from outside

Cross fold: Option, plate fold device

Perforation shafts: Yes, standard

Paper size minimum: 90 x 120 mm, standard

Paper size maximum: 350 x 500 mm (A3)

Paper stocks: 40-250 gsm, depending on paper quality and kind of folding

Folding performance: Up to 25,000 sheets A4/hour

Electrical connection: 240 V / 50 Hz

Electrical consumption: 300 W, without compressor
