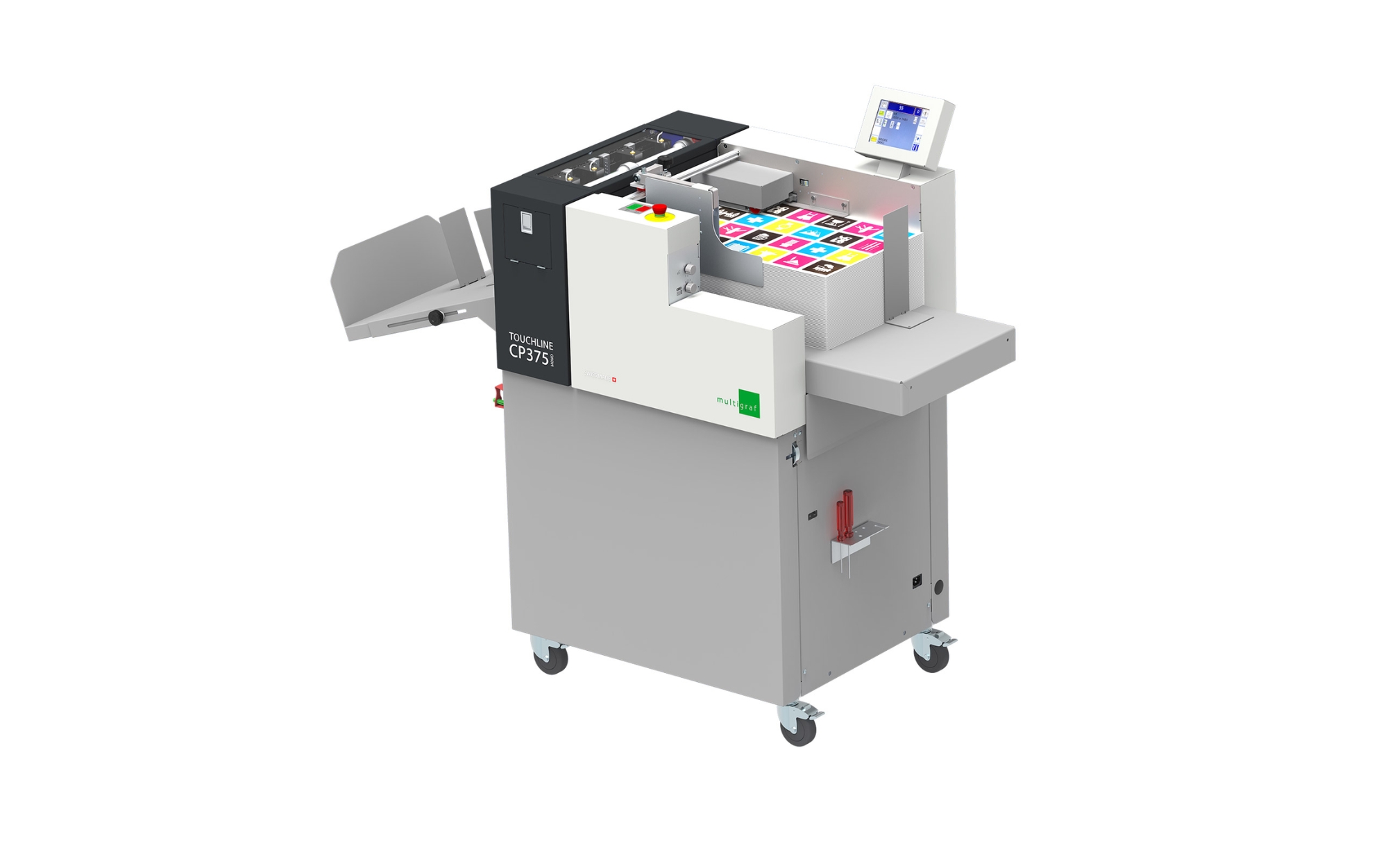

Touchline CP375 MONO

Touchline CP375 MONO

Touchline CP375 MONO Overview

  • Creasing and perforating
  • Easy operation with touchscreen
  • Automatic programming
  • Uniquely engineered to perforate NCR Paper
  • Flexible delivery system
  • Double sheet detection

The Touchline CP375 MONO delivers on long-standing demands within the print finishing industry for efficient perforating (stop-and-go or continuous, longitudinal) and high-quality comb creasing. Tool changes are quick and seamless, thanks to a patented, fully automated changing system. Each tool is electronically detected, and the required pressure is automatically adjusted. Additional tools can be conveniently stored in the integrated slide-in compartments.

The CP375 MONO supports up to four perforating heads for longitudinal processing. All functions are intuitively managed via a touchscreen monitor.

For added flexibility, the CP375 MONO can be seamlessly integrated with the TF375 and TCF375 folding units, enabling full inline finishing.

Creasing and Perforating in One Pass

Efficiently crease and perforate in a single operation. No need to handle sheets multiple times. Perforate in both directions down to 60gsm.

Rotary Perforation Module

Equipped with a rotary perforating tool for smooth, consistent micro- or full-perforations in longitudinal direction.

Unique Solution for Perforating NCR Paper

Perforate NCR paper with exceptional accuracy and consistency – a feature not commonly found in standard finishing equipment. Ideal for flawless perforation on multipart forms, invoices, or receipts.

User-Friendly Touchscreen Interface

Intuitive setup and control via a colour touchscreen. No tools required to change job settings or positions.

Top-Feed Vacuum Belt System

Handles a wide range of media weights and formats with excellent feeding reliability, even for digitally coated stocks.

Automatic Job Change

Switch between jobs at the push of a button. Perfect for short-run, high-variety workflows.

Download Brochure
Enquire

Typical Applications

  • Event tickets
  • Reply cards
  • Vouchers
  • Receipts
  • Order forms
  • Lottery tickets

Technical Specifications for Creasing & Perforating

Feeder system: Suction feeder

Feeder capacity: 180 mm

Paper size minimum: 105 x 148 mm

Paper size maximum: 375 x 660 mm (375 x 1‘050 mm with optional table extension)

Paper stocks perforating: 80-300 gsm or max. 0.3 mm (Paper stocks depending on material quality)

Paper stocks creasing: 80-400 gsm or max. 0.4 mm (Paper stocks depending on material quality)

Control panel: Touchscreen

Double sheet detection: Ultrasonic

Working system: Multigraf Quick-Set interchangeable tools

Reception tray height: 120 mm

Delivery belt optional shingling delivery: L = 1,100 mm, P/N 482.112

Speed depending on job: Up to 6,000 sheets per hour

Dimensions: 1‘560 x 610 x 1‘200 mm

Weight: 140 kg

Electrical connection: 100-240 VAC, 50/60 Hz
